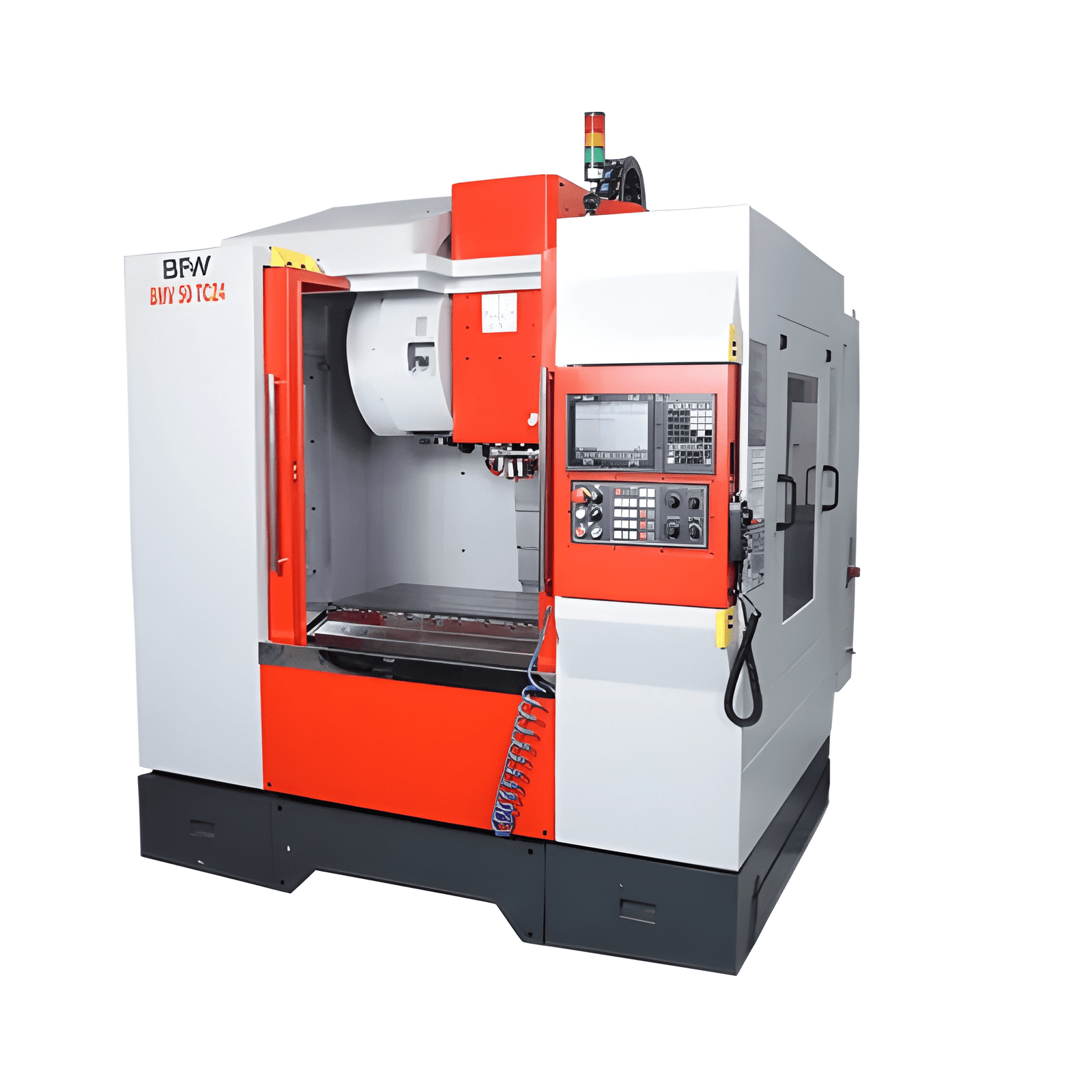

VMC 01 BMV50

High Precision

CNC System: Fanuc OI MF Plus / Mitsubishi M80A

Tool Magazine: 24 Tools Pragathi ATC (TC24) / 30 Tools (TC30)

Spindle Power: 7.5/11 kW (Fanuc/Mitsubishi) | 9/13.5 kW (Siemens)

Spindle Speed: 8000 rpm (Std) | Optional: 4800/6000/10000 rpm

Travel (X/Y/Z): 800 / 510 / 510 mm

Table Size: 1000 x 510 mm

Max. Load: 600 kg

Parameter	BMV50	BMV50 TC24	BMV50 TC30
Positioning (mm)	0.012	0.012	0.012
Repeatability (mm)	0.010	0.010	0.010

Specification	Capacity (mm)
X-Axis Travel	800
Y-Axis Travel	510
Z-Axis Travel	510
Spindle Nose to Table Top	100 - 610
Spindle Center to Column Front	540
Distance Floor to Table	950

Parameter	Value
Table Size	1000 x 510 mm
T-Slots (No./Size/Pitch)	5 / 18 / 100 mm
Max. Load on Table	600 kg

Parameter	Standard	Optional
Spindle Taper	BT-40
Spindle Speed (rpm)	8000	4800 / 6000 / 10000
Rapid Traverse (X/Y/Z)	40 m/min
Feed Rate	1 - 10,000 mm/min

Controller	Power Rating
Fanuc / Mitsubishi	7.5/11 kW (Cont./30 min)
Siemens	9/13.5 kW (Cont./S6-40%)

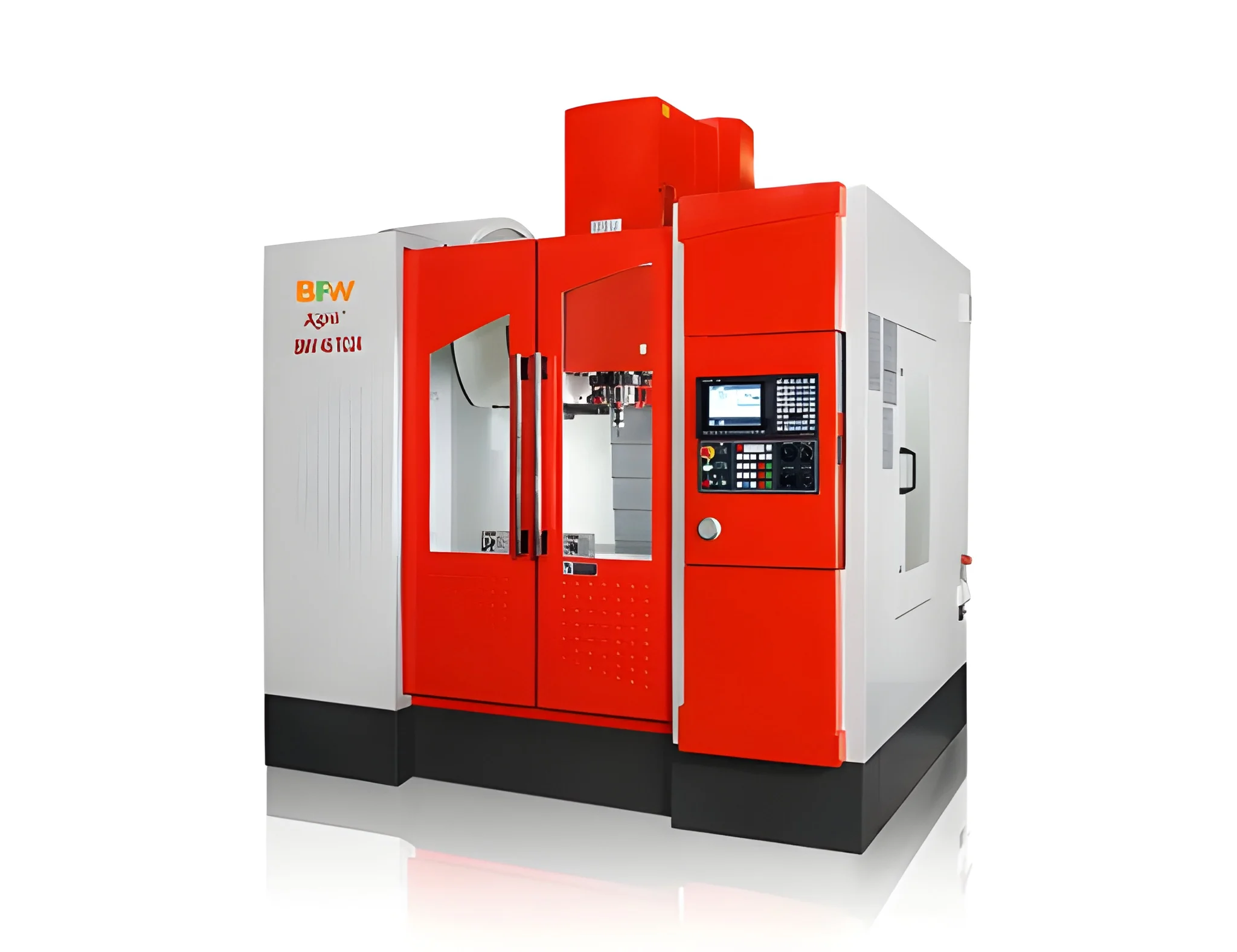

VMC 02 BMV45+

High Precision VMC

Travel (X/Y/Z): 600 / 450 / 500 mm

Table Size: 900 × 450 mm

Tool Magazine: 24 Tools (TC24) / 30 Tools (TC30)

Spindle Power: 5.5/7.5 kW Std | 7.5/11 kW High Power

Spindle Speed: 8000 rpm Std | Optional: 4800 / 6000 / 10000 rpm

Spindle Taper: BT-40

Max. Load: 500 kg

Detailed Specifications

Technical Specifications

Capacity	Unit	BMV45+	BMV45+ TC24	BMV45+ TC30
Table Longitudinal Travel (X-Axis)	mm	600	600	600
Table Cross Travel (Y-Axis)	mm	450	450	450
Headstock Travel (Z-Axis)	mm	500	500	500
Spindle Nose Face to Table Top	mm	100 – 600	100 – 600	100 – 600
Increased Daylight Area with Column Height Block (Optional)	mm	300 – 800	300 – 800	300 – 800
Distance from Floor to Table	mm	955	955	955
Spindle Center – Column Front Distance	mm	460	460	460

Accuracy as per ISO 230-2

Accuracy Parameter	Unit	BMV45+	BMV45+ TC24	BMV45+ TC30
Positioning	mm	0.012	0.012	0.012
Repeatability	mm	0.009	0.009	0.009

Table Specifications

Table Parameter	Unit	BMV45+	BMV45+ TC24	BMV45+ TC30
Table Size	mm	900 × 450	900 × 450	900 × 450
T-Slot (No. / Size / Pitch)	mm	5 / 18 / 80	5 / 18 / 80	5 / 18 / 80
Max. Load on Table Std.	kg	500	500	500

Spindle & Axes

Spindle & Axes	Unit	BMV45+	BMV45+ TC24	BMV45+ TC30
Spindle Taper	-	BT-40	BT-40	BT-40
Spindle Speed – Std.	rpm	8000	8000	8000
Spindle Speed – Opt.1	rpm	4800	4800	4800
Spindle Speed – Opt.2	rpm	6000	6000	6000
Spindle Speed – Opt.3	rpm	10000	10000	10000
Spindle Power – Std. (Fanuc / Mitsubishi)	kW	5.5 / 7.5	5.5 / 7.5	5.5 / 7.5
Siemens, Cont./ S6–40% Rating	kW	9 / 13.5	9 / 13.5	9 / 13.5
Spindle Power – Opt (High Power)	-	BMV45+	BMV45+ TC24	BMV45+ TC30
Fanuc / Mitsubishi, Cont./30 min. Rating	kW	7.5 / 11	7.5 / 11	7.5 / 11
Rapid Traverse – X/Y/Z – Std.	m/min	32	32	32
Feed Rate	mm/min	1 – 10,000	1 – 10,000	1 – 10,000

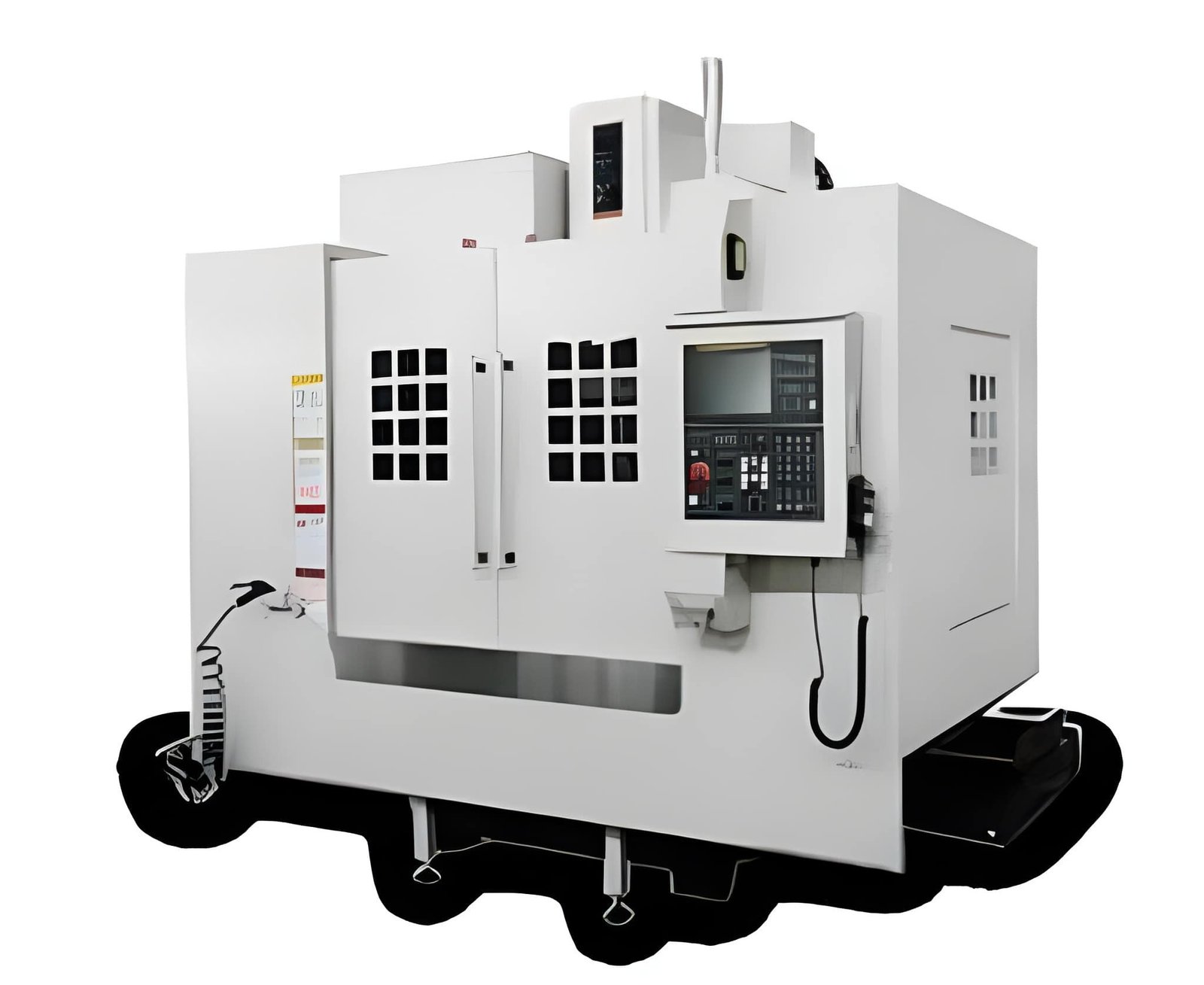

VMC 03 - PVM1165+

High Performance VMC

CNC System: Mitsubishi / Fanuc / Siemens

Table Size: 1200 × 600 mm

Travel (X/Y/Z): 1100 / 650 / 600 mm

Spindle Power: 11 / 15 kW

Spindle Speed: 12,000 rpm Direct Drive

Tool Magazine: 30 Tools

Guideways: Roller Guideways

Max. Load: 800 kg

Detailed Specifications

Table Specifications

Description	Unit	PVM 855+	PVM 1055+	PVM 1165+	PVM 1265+
Table Size	mm	1000 × 500	1100 × 500	1200 × 600	1300 × 600
Max. Load Capacity	kg	600	600	800	800
T-Slots	mm	5 × 18-100	5 × 18-100	5 × 18-100	5 × 18-100
Dist. Table Surface to Spindle	mm	120 - 720	120 - 720	120 - 720	120 - 720

Spindle Specifications

Description	Unit	PVM 855+	PVM 1055+	PVM 1165+	PVM 1265+
Spindle Taper	type	BBT40	BBT40	BBT40	BBT40
Spindle Speed	rpm	12,000	12,000	12,000	12,000
Spindle Driving Method	type	Direct Drive	Direct Drive	Direct Drive	Direct Drive
Main Spindle Power Output	kW	11 / 15	11 / 15	11 / 15	11 / 15
Max. Spindle Torque	nm	118 @ 1500 rpm	118 @ 1500 rpm	118 @ 1500 rpm	118 @ 1500 rpm

Feed Specifications

Description	Unit	PVM 855+	PVM 1055+	PVM 1165+	PVM 1265+
Travel (X/Y/Z)	mm	850 / 550 / 600	1000 / 550 / 600	1100 / 650 / 600	1200 / 650 / 600
Rapid Rate (X/Y/Z)	m/min	48 / 48 / 36	48 / 48 / 36	36 / 36 / 32	36 / 36 / 32
Feed Rate (X/Y/Z)	m/min	12	12	12	12
Guideways	type	Roller Guideways	Roller Guideways	Roller Guideways	Roller Guideways
Number of Tools	nos.	30	30	30	30

ATC Specifications

Description	Unit	PVM 855+	PVM 1055+	PVM 1165+	PVM 1265+
Max. Tool Dia. (W.T / W.O)	mm	Ø80 / Ø120	Ø80 / Ø120	Ø80 / Ø120	Ø80 / Ø120
Max. Tool Length	mm	300	300	300	300
Max. Tool Weight	kg	8	8	8	8
Tool Change Time	sec	2.5	2.5	2.5	2.5

Accuracy

Description	Unit	PVM 855+	PVM 1055+	PVM 1165+	PVM 1265+
Positioning	mm	0.008	0.008	0.008	0.008
Repeatability	mm	0.004	0.004	0.004	0.004

Power Supply

Description	Unit	PVM 855+	PVM 1055+	PVM 1165+	PVM 1265+
Air Consumption	bar	6–8	6–8	6–8	6–8
Electric Power Supply	kva	21	21	36	36
Voltage	v/hz	380v±10% 50hz	380v±10% 50hz	380v±10% 50hz	380v±10% 50hz

Machine Specifications

Description	Unit	PVM 855+	PVM 1055+	PVM 1165+	PVM 1265+
Machine Dimensions	mm	2650 × 2700 × 2850	2650 × 2700 × 2850	3200 × 2985 × 2960	3200 × 2985 × 2960
Machine Weight	kg	4,500	5,000	5,500	6,000
Controller	type	Mitsubishi / Fanuc / Siemens	Mitsubishi / Fanuc / Siemens	Mitsubishi / Fanuc / Siemens	Mitsubishi / Fanuc / Siemens

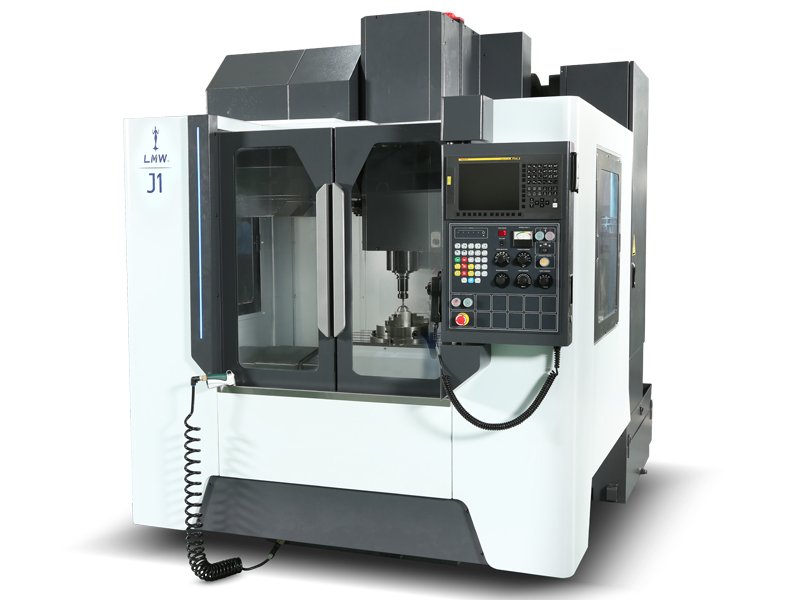

VMC 04 - LMW J1

Precision Machining Center

CNC System: Fanuc Oi-MF Plus

Table Size: 900 × 500 mm

Travel (X/Y/Z): 900 / 510 / 600 mm

Spindle Power: 7.5 / 11 / 15 kW

Spindle Speed: 8000 / 10000 / 12000 rpm

Tool Magazine: 24 Tools Automatic Tool Changer

Spindle Taper: BBT40 (BT40 Optional)

Table Loading Capacity: 500 kg

Rapid Traverse: 40 / 40 / 40 m/min

Detailed Specifications

Machine Size

Description	Unit	Specification
W × D × H	mm	1900 × 3110 × 2845
Weight	kgs	4500

Table

Description	Unit	Specification
Table Size	mm	900 × 500
Table Loading Capacity	kgs	500
T Slot Size × Pitch	nos. × mm × mm	5 × 18 × 100

Spindle

Description	Unit	Specification
Spindle Speed	rpm	8000 (10000 / 12000 Optional)
Spindle Bore Taper	type	BBT40 (BT40 Optional)
Spindle Motor Power (Cont./S2/S3)	kW	7.5 / 11 / 15
Max. Spindle Torque	Nm	35.8 / 47.8 / 70 / 95.5

Feed System

Description	Unit	Specification
Rapid Traverse Rate (X / Y / Z) - Axis	m/min	40 / 40 / 40
Cutting Feed Rate	m/min	10
Dia. × Pitch of Ball Screw	mm	Ø40 × 16

Automatic Tool Changer

Description	Unit	Specification
No. of Tools	nos	24
Tool Shank Configuration	type	BT40
Max. Tool Dia with Adjacent Tool	mm	80
Max. Tool Dia without Adjacent Tool	mm	125
Max. Tool Length	mm	250
Max. Tool Weight	kgs	8
Tool Change Time (Tool to Tool)	sec	1.9

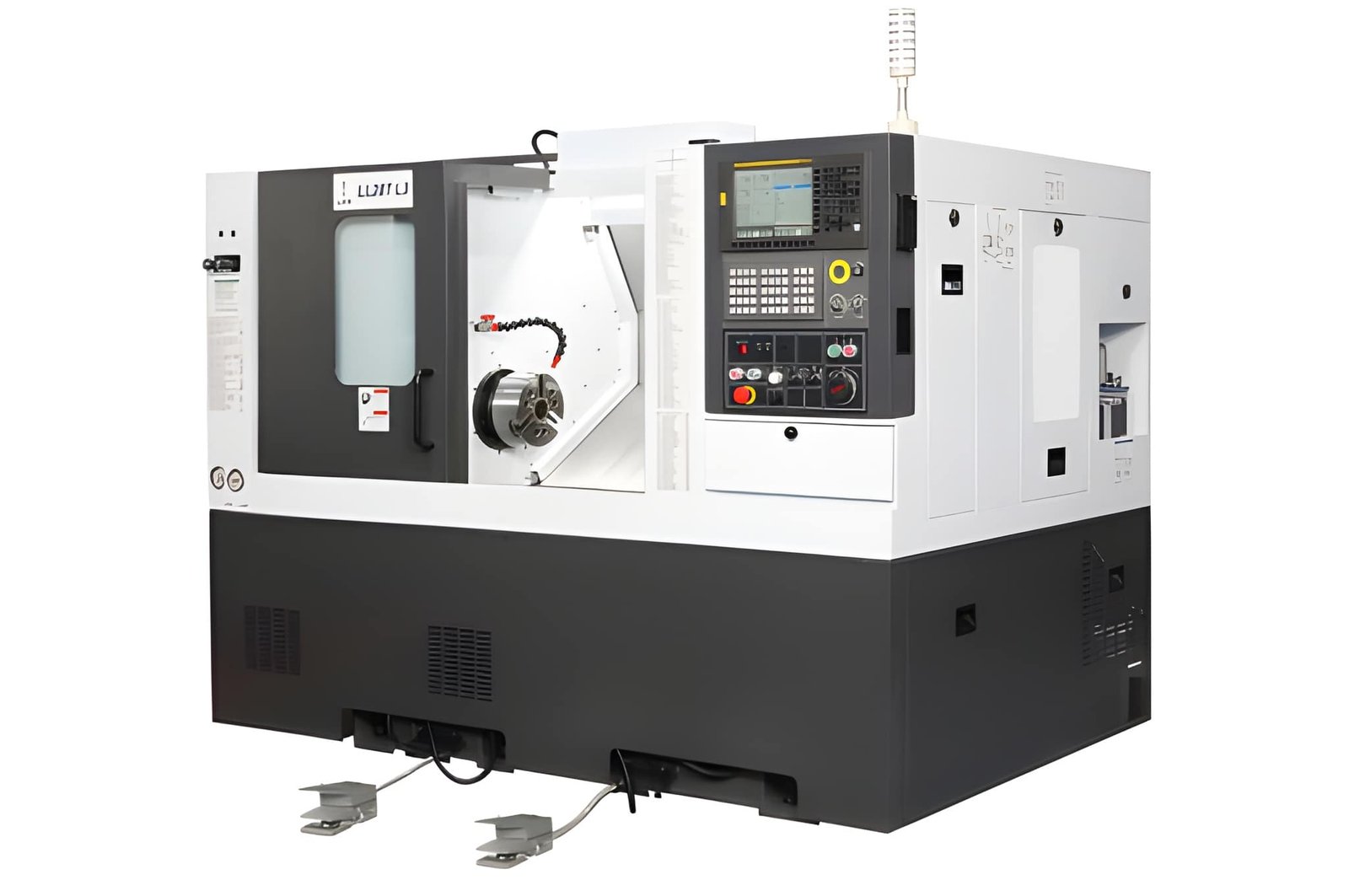

CNC 01 LX20T L5

High Precision CNC Turning Center

CNC System: Fanuc / Siemens

Swing Over Bed: 510 mm

Chuck Diameter: 210 mm

Max. Turning Diameter: 320 mm

Max. Turning Length: 500 mm

Spindle Motor Power: Fanuc - 11 / 7.5 kW | Siemens - 10.5 / 7 kW

Spindle Speed: Fanuc - 3000 rpm | Siemens - 3500 rpm

Hole Through Spindle: 61 mm

Tool Changer: 24 Tools Automatic Tool Changer

Rapid Traverse: 30 / 30 m/min (X/Z)

Detailed Specifications

Machine Size

Description	Unit	Specification
Front × Side × Height	mm	2255 × 1650 × 1920
Weight	kg	3300

Capacity

Description	Unit	Specification
Swing Over Bed	mm	510
Chuck Dia, Max	mm	210
Max. Turning Diameter	mm	320
Max. Turning Length	mm	500*
Admit Between Centres	mm	625*

Spindle

Description	Unit	Specification
Spindle Nose	type	A2-6
Hole Through Spindle	mm	61
Spindle Speed	rpm	Fanuc - 3000 / Siemens - 3500
Spindle Motor Power	kW	Fanuc - 11 / 7.5 \| Siemens - 10.5 / 7

Feed System

Description	Unit	Specification
Inclination of Carriage	deg	30° to Horizontal Plane
Cross Travel X - Axis	mm	185
Longitudinal Travel Z - Axis	mm	560
Rapid Traverse (X/Z) - Axes	m/min	30 / 30

Automatic Tool Changer

Description	Unit	Specification
No. of Tools	nos	24
Tool Shank Configuration	type	BT40
Max. Tool Dia with Adjacent Tool	mm	80
Max. Tool Dia without Adjacent Tool	mm	125
Max. Tool Length	mm	250
Max. Tool Weight	kgs	8
Tool Change Time (Tool to Tool)	sec	1.9

Tailstock

Description	Unit	Specification
Quill Dia	mm	75
Quill Stroke	mm	100
Quill Taper	mm	MT-4

CNC System

Description	Unit	Specification
Controller	type	Fanuc / Siemens

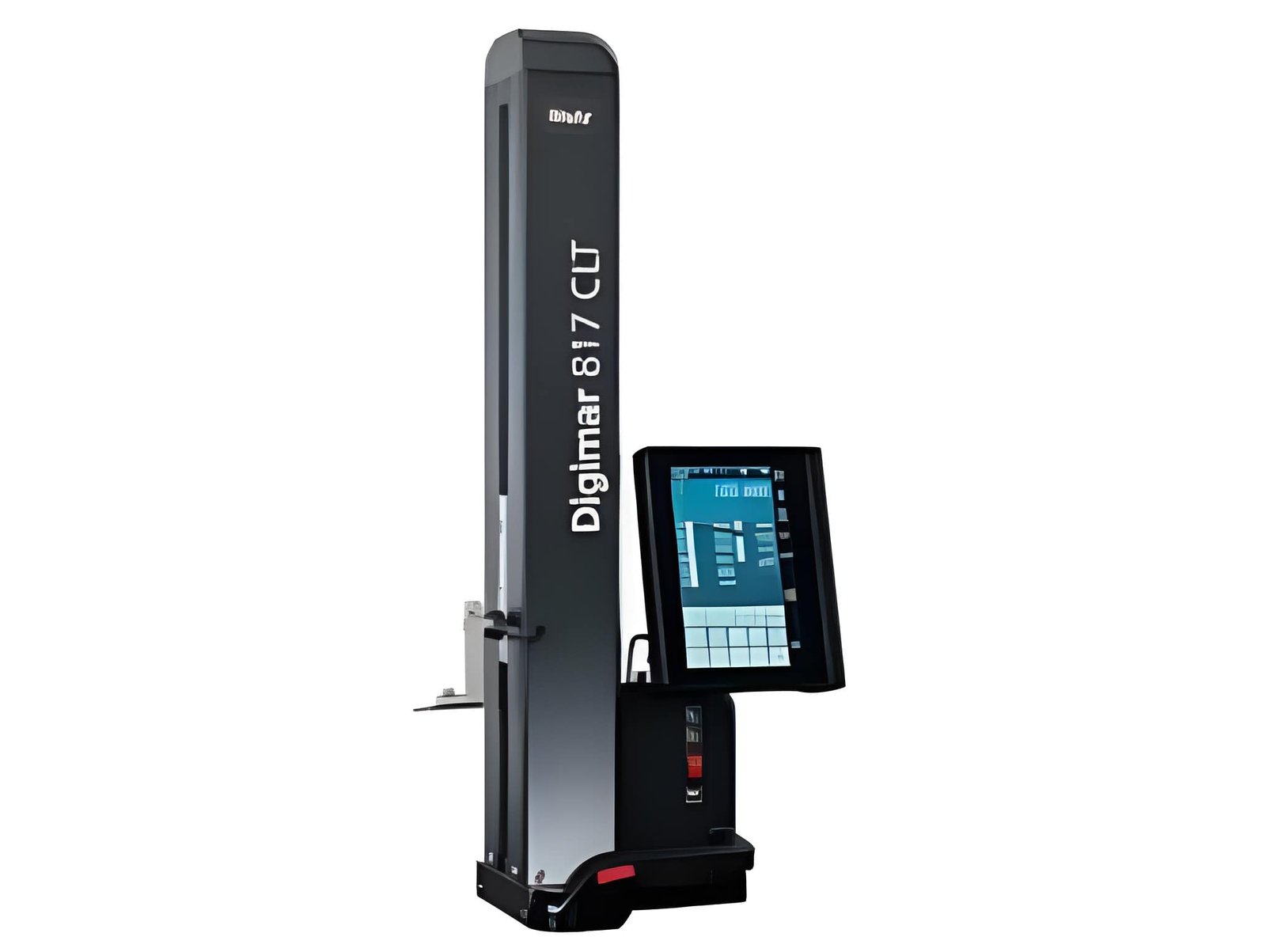

Digimar 817 CLT

High Precision Digital Height Measuring Instrument

CNC System: Fanuc / Siemens

Admit Between Centres: 625 mm

Swing Over Bed: 510 mm

Max. Turning Diameter: 320 mm

Max. Turning Length: 500 mm

Spindle Motor Power: Fanuc - 11 / 7.5 kW | Siemens - 10.5 / 7 kW

Spindle Speed: Fanuc - 3000 rpm | Siemens - 3500 rpm

Chuck Diameter: 210 mm

Hole Through Spindle: 61 mm

Tailstock: Hydraulic Tailstock

Description	Unit	Specification
Model	—	Digimar 817 CLT
Measuring Range	mm	0 – 817
Resolution	mm	0.0001
Repeatability	mm	0.0005
Maximum Permissible Error	µm	2.5 + L/300
Display Type	—	Digital LCD
Measuring System	—	Incremental
Air Bearing System	—	Yes
Data Output	—	USB / RS232
Power Supply	—	Rechargeable Battery
Operating Temperature	°C	20 ± 1
Application	—	Precision Height Measurement
Base Material	—	Hardened Stainless Steel
Measuring Force	N	Adjustable
Weight	kg	Approx. 13
Manufacturer	—	Mahr

SR. NO.	Instrument Name	Size / Range / L.C

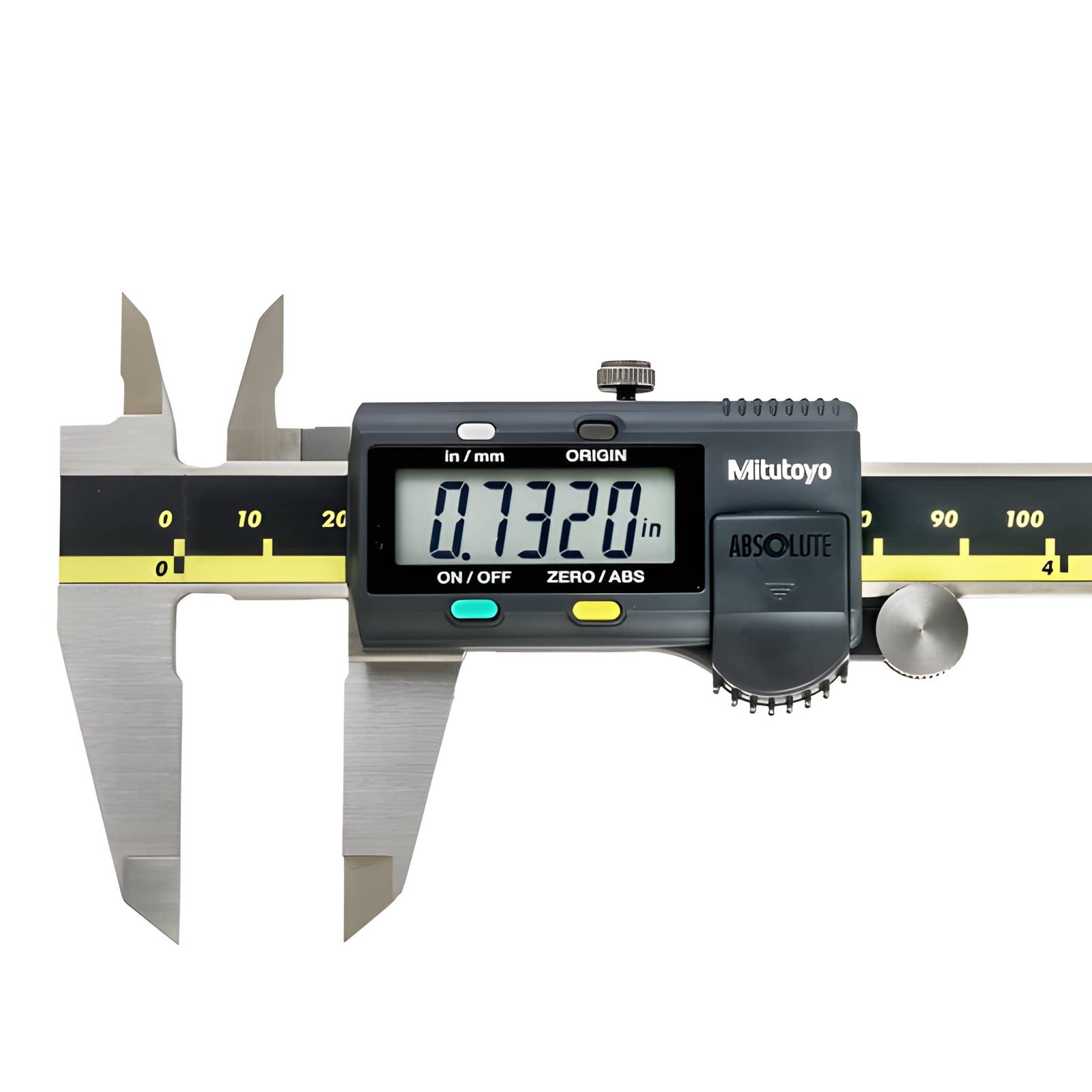

01	Digital Vernier Calipers	Range - 0 - 200mm (L.C - 0.01mm) Range - 0 - 300mm (L.C - 0.01mm)

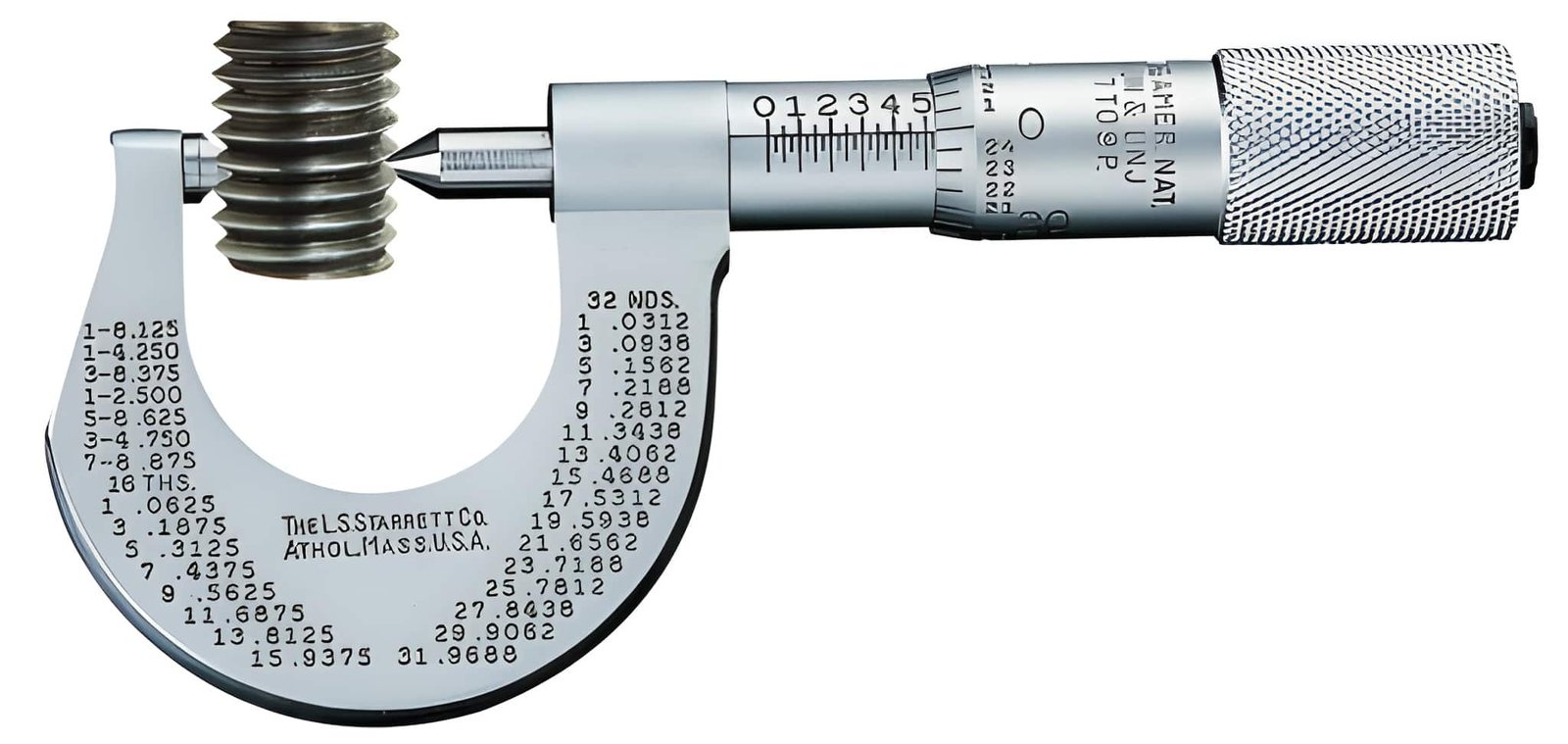

02	Micrometres	Range - 0 - 25mm (L.C - 0.01mm)

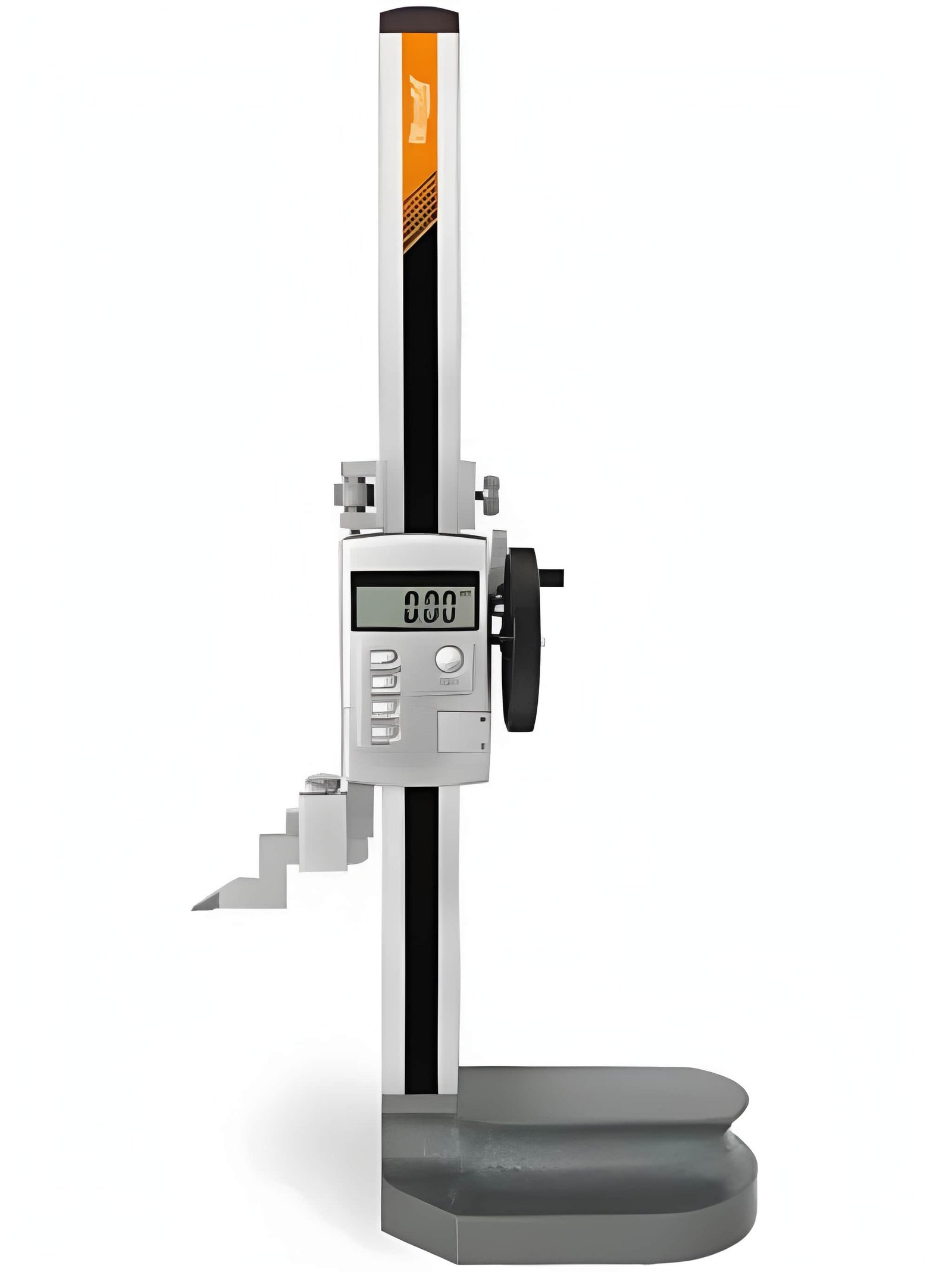

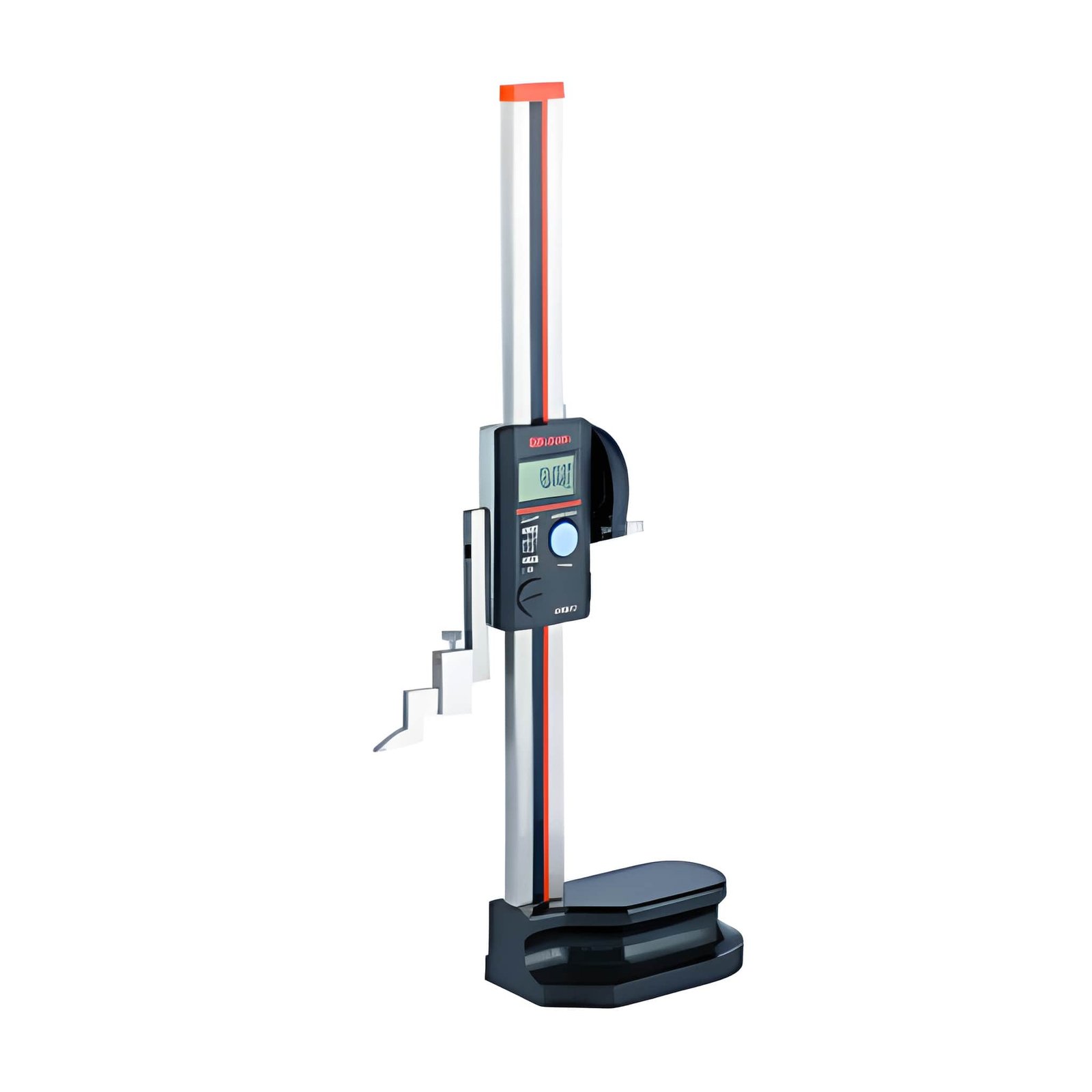

03	Digital Height Gauge	Range - 0 - 300mm (L.C - 0.01mm)

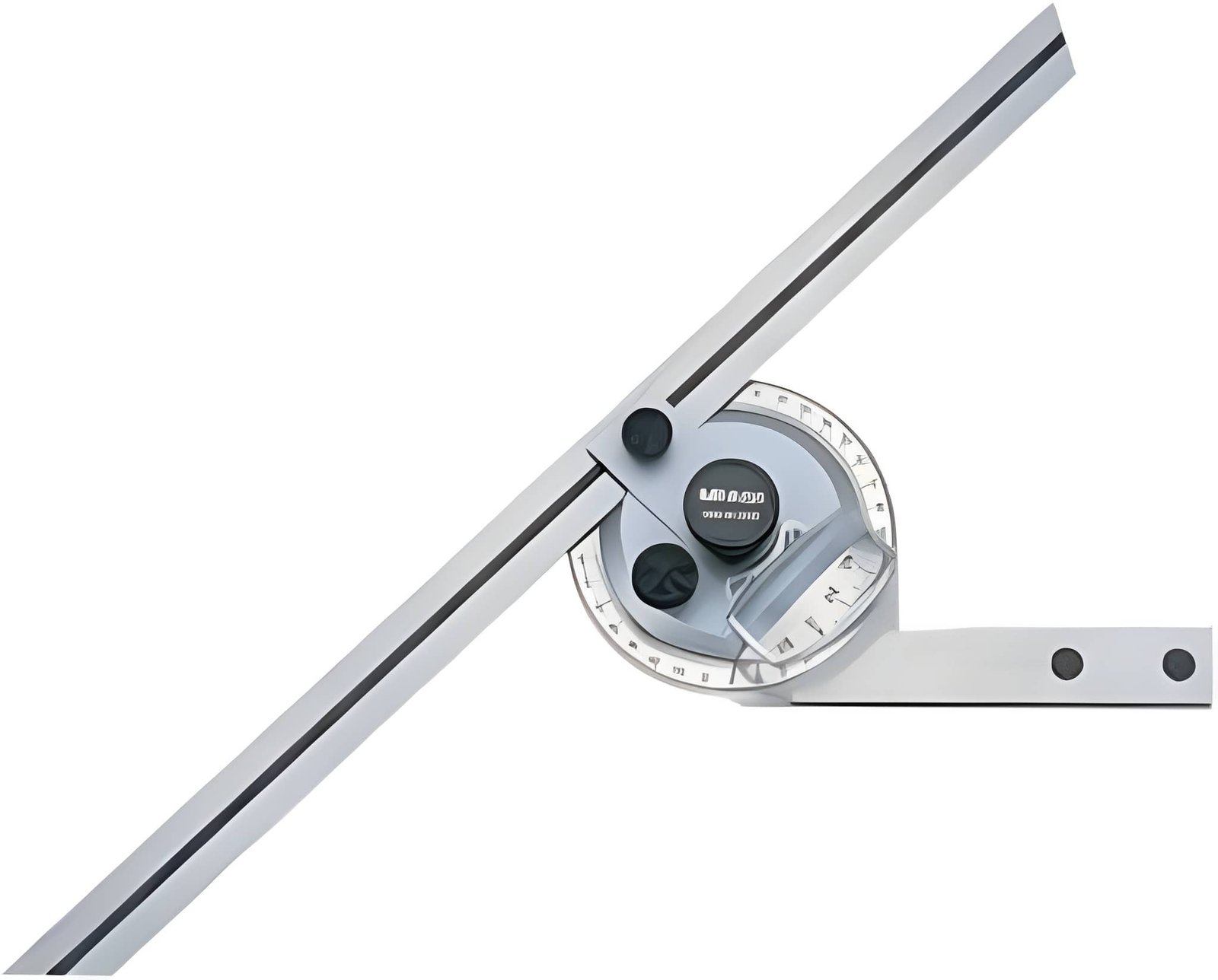

04	Bevel Protector	L.C - 0°15'

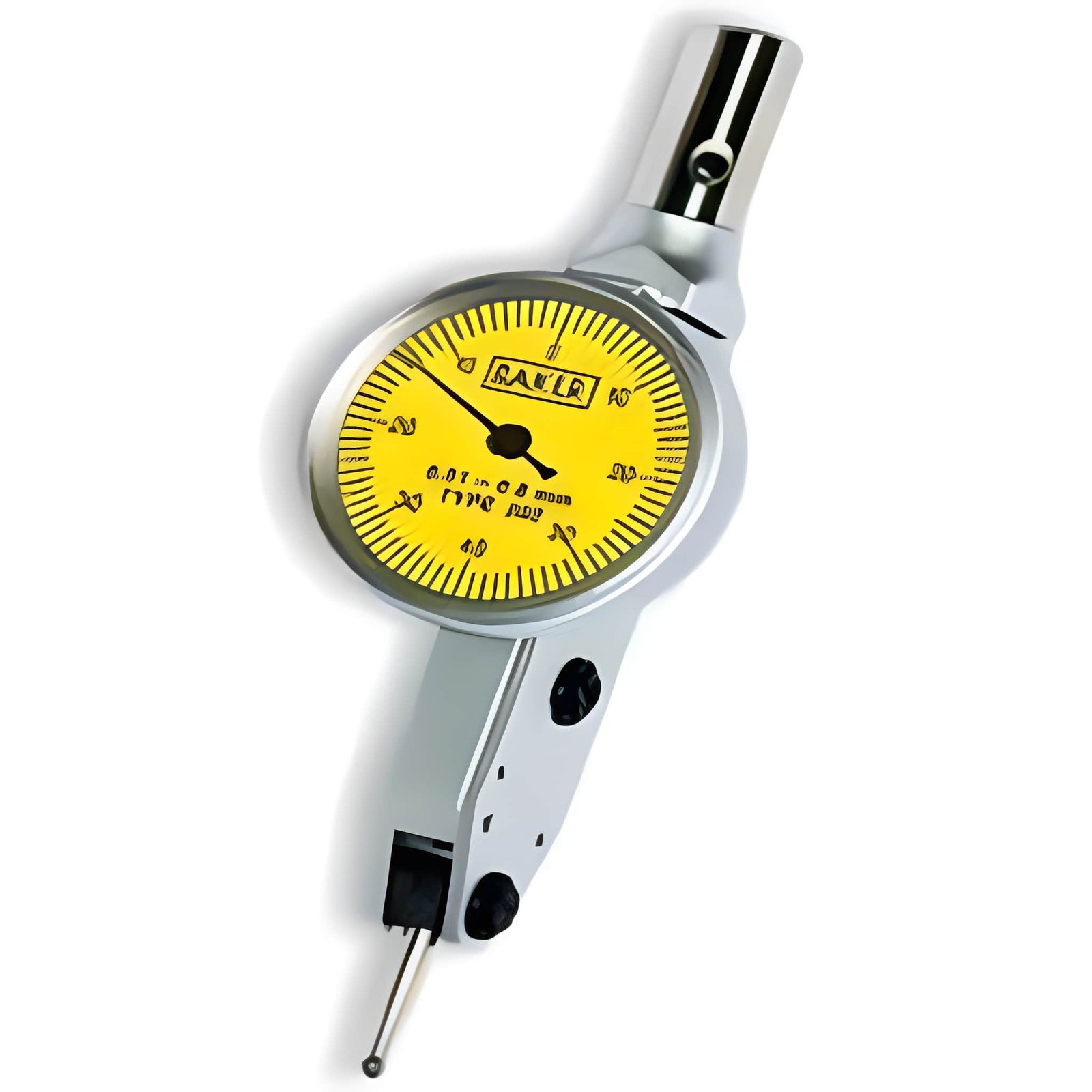

05	Dial Indicators (Lever Type - Puppet)	L.C - 0.01mm

Our Machinery

CNC Machining Centers

VMC 01 BMV50

Detailed Specifications

Accuracy as per ISO 230-2

Travel & Dimensions

Table Specifications

Spindle & Axes

Spindle Power

VMC 02 BMV45+

Detailed Specifications

Technical Specifications

Accuracy as per ISO 230-2

Table Specifications

Spindle & Axes

VMC 03 - PVM1165+

Detailed Specifications

Table Specifications

Spindle Specifications

Feed Specifications

ATC Specifications

Accuracy

Power Supply

Machine Specifications

VMC 04 - LMW J1

Detailed Specifications

Machine Size

Table

Spindle

Feed System

Automatic Tool Changer

CNC 01 LX20T L5

Detailed Specifications

Machine Size

Capacity

Spindle

Feed System

Automatic Tool Changer

Tailstock

CNC System

Digimar 817 CLT

Detailed Specifications

Primary Inspection Instruments

Measurement Tools & Gauges

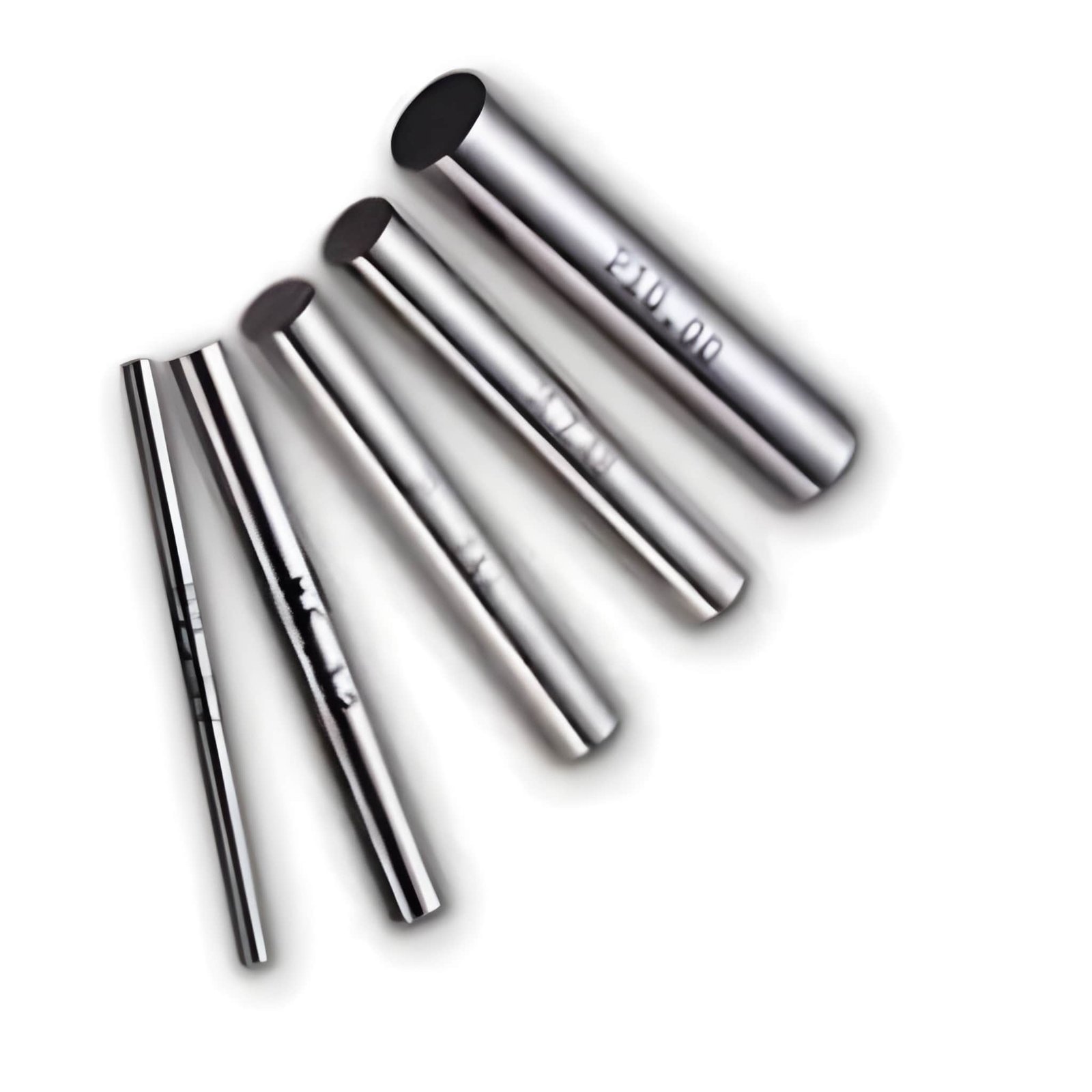

Pin Gauge

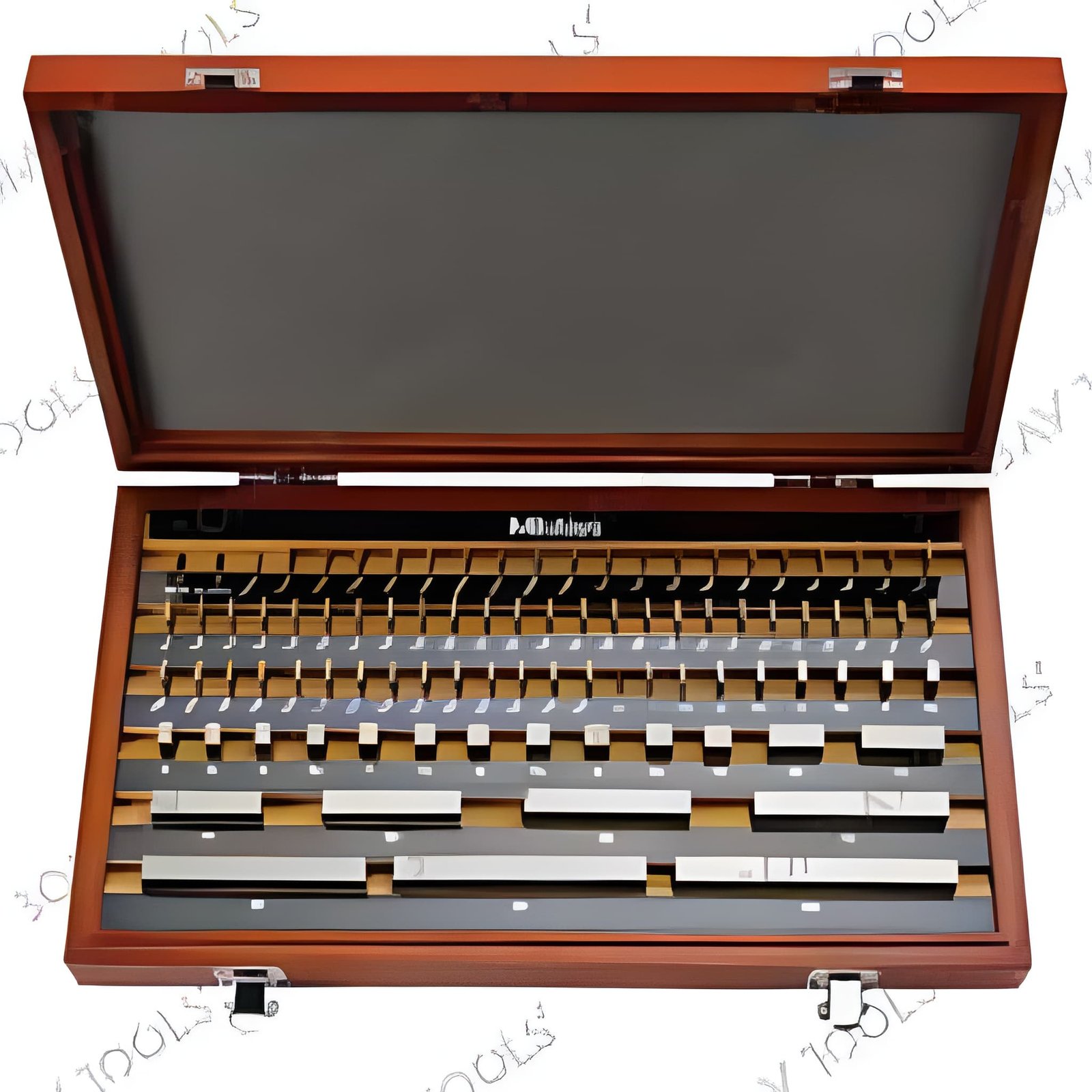

Slip Gauge

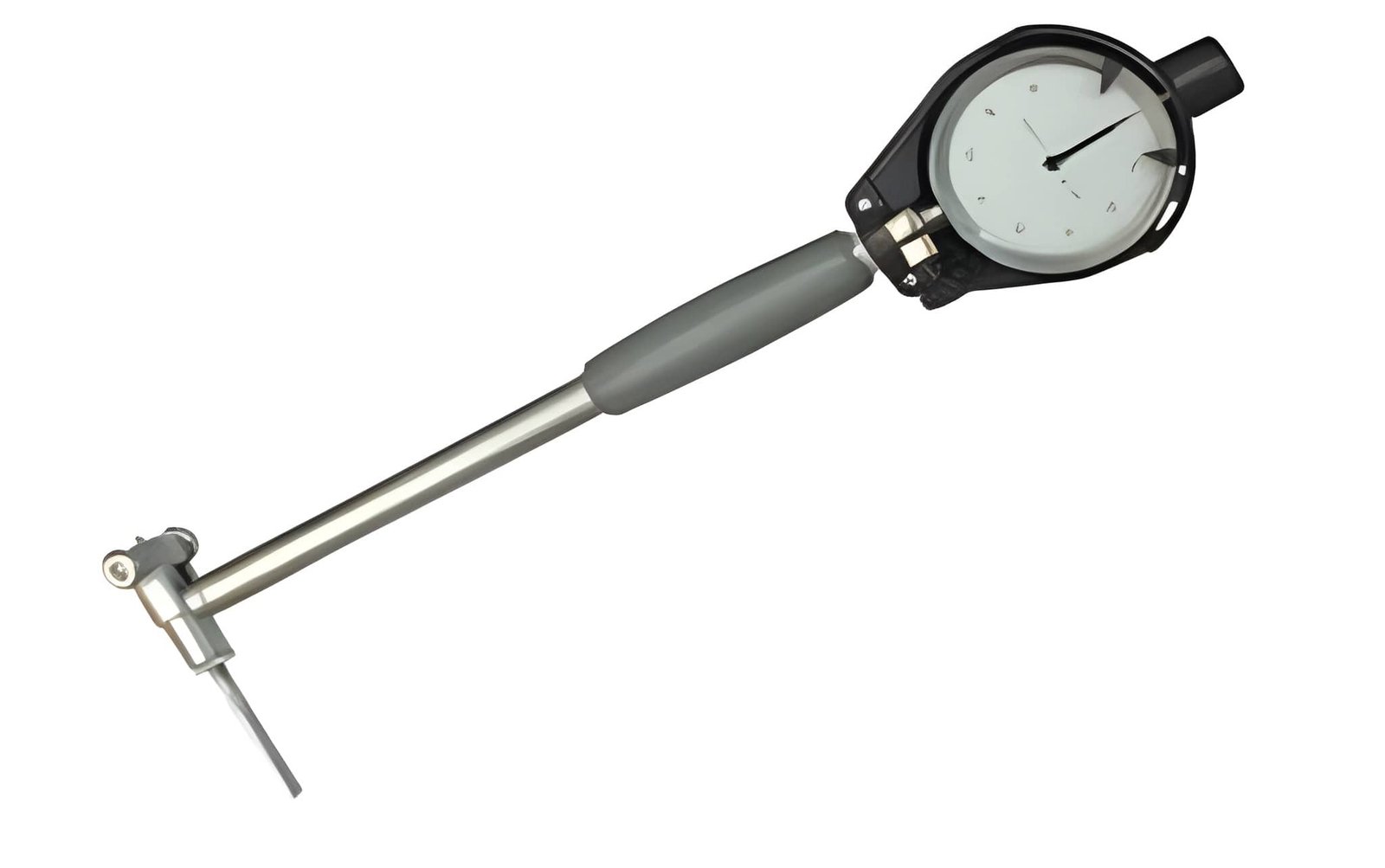

Bore Gauge

Height Gauge

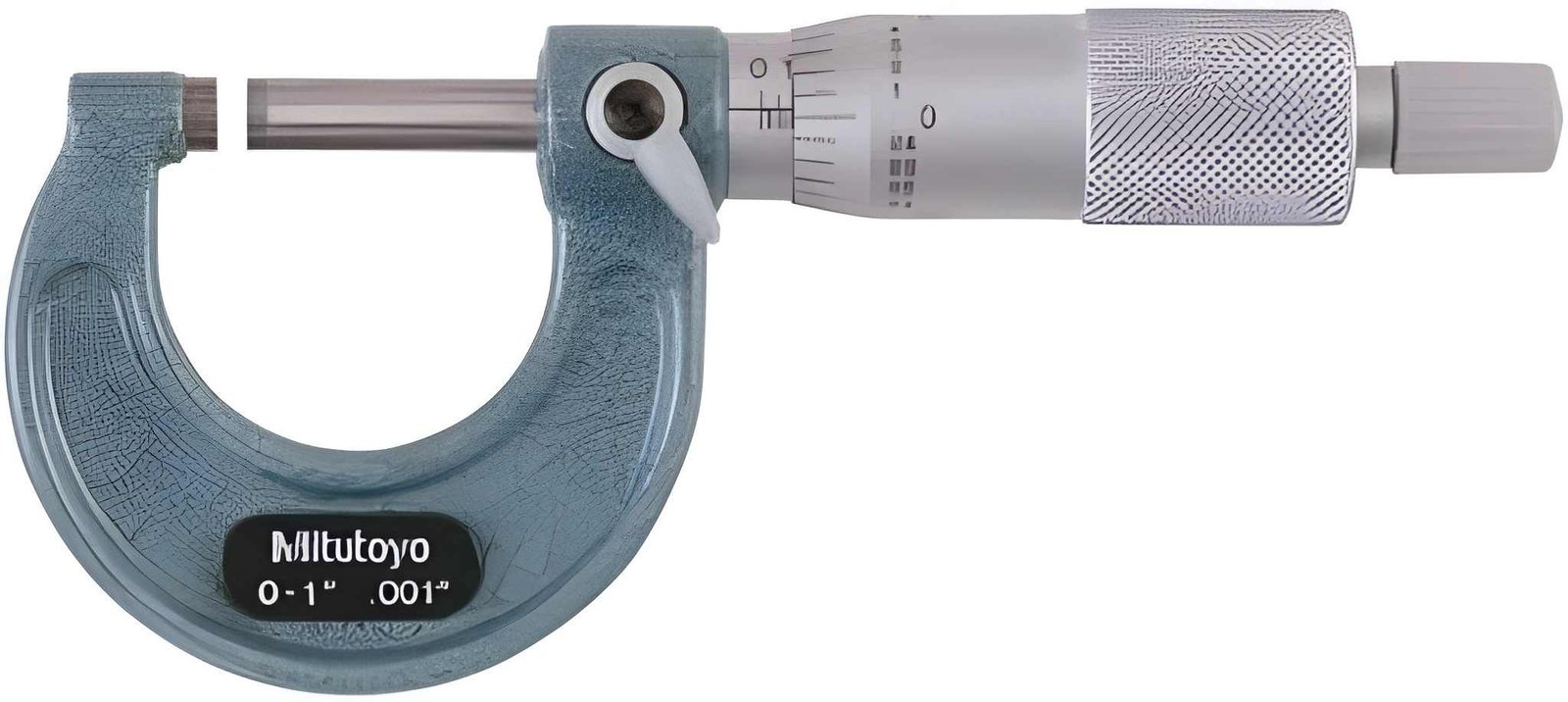

Micrometer

Vernier Caliper

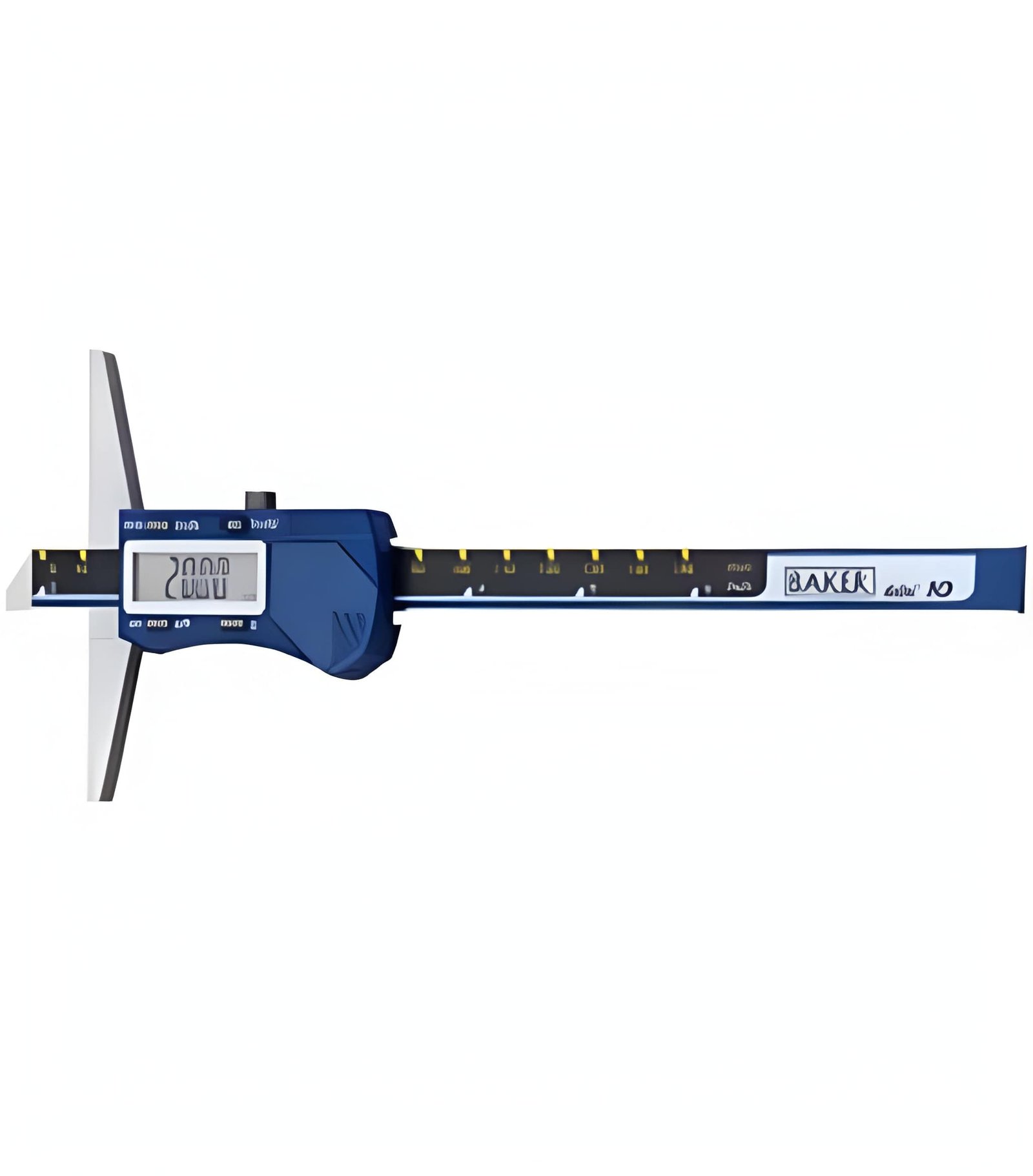

Depth Vernier Caliper

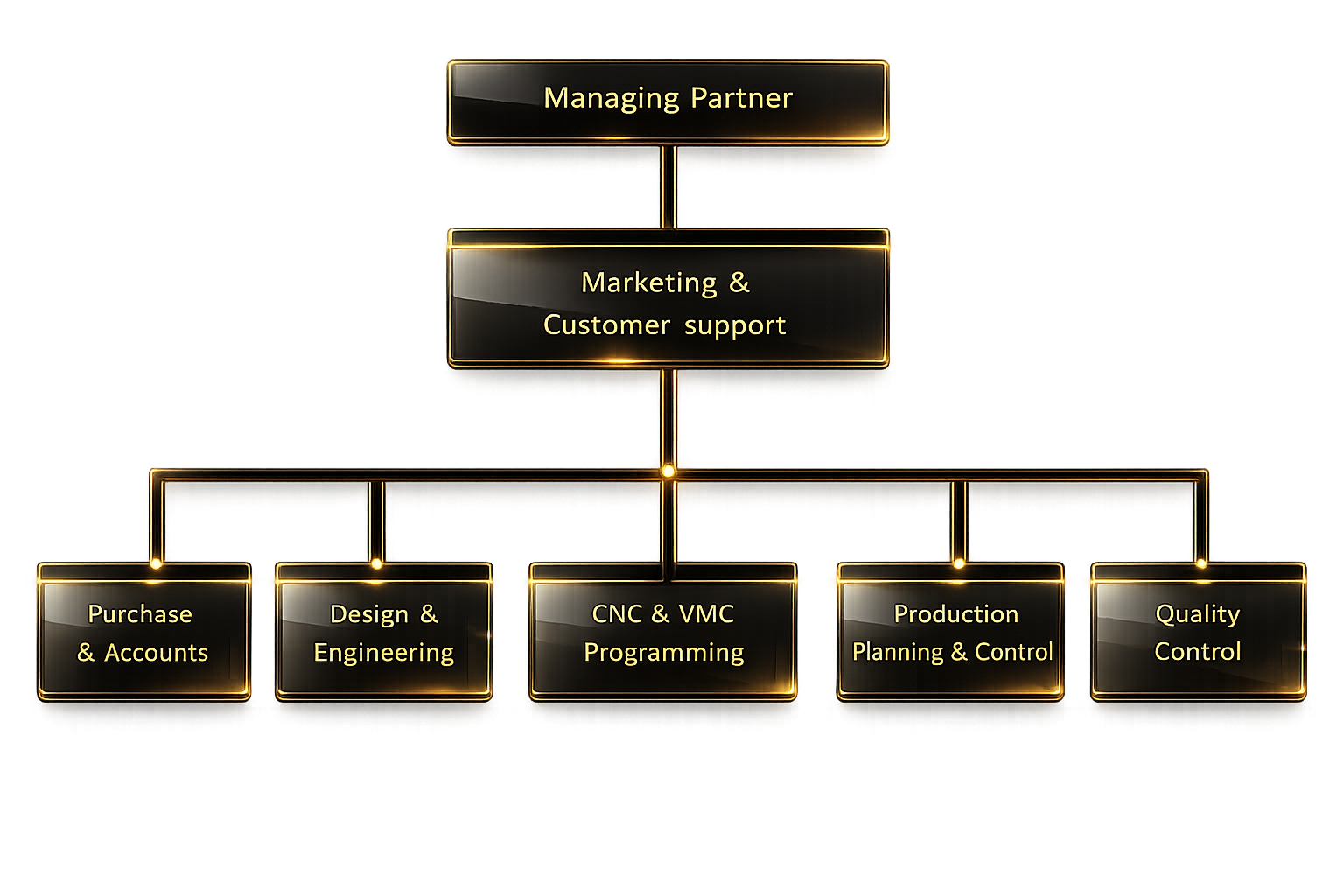

Our Working Structure
